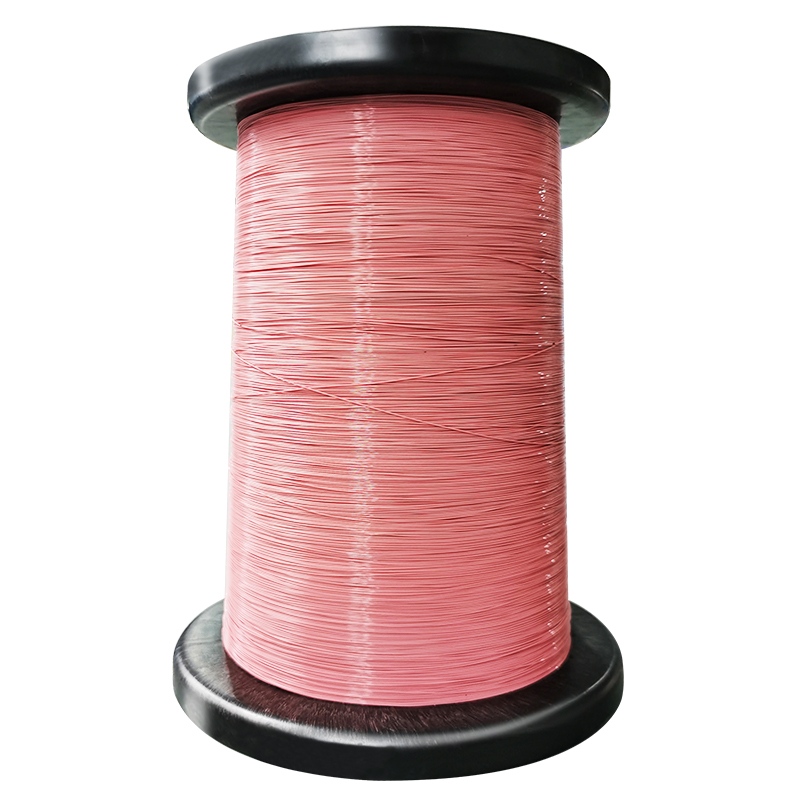

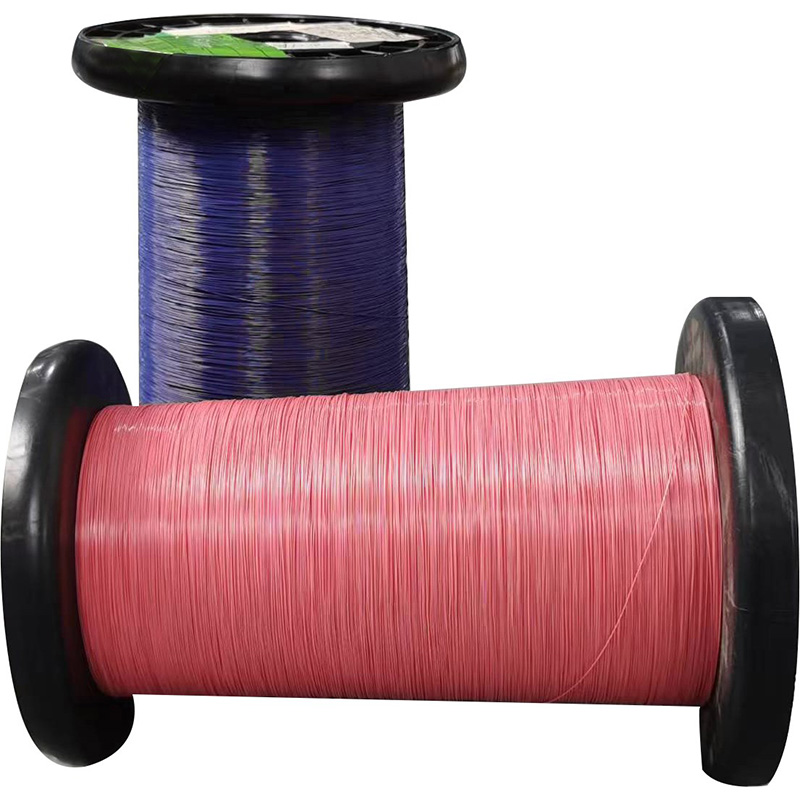

ETFE絶縁マグネットワイヤ

この華英ETFE絶縁マグネットワイヤは恵州華英電子技術有限公司によって製造され、世界各国の顧客に供給され、広く高い評価を得ています。この高い評判は、当社の高品質製品、熱心な技術研究、厳格な製造プロセスに由来しています。

お問い合わせを送信

製品説明

Product Emergency Performance

Let's discuss the emergency performance of this Huaying ETFE Insulated Magnet Wire. Its emergency performance is truly exceptional! Did you know that its oxygen index can exceed 90? Thanks to its excellent flame retardancy, it can effectively contain a fire in the event of a short circuit, preventing it from spreading—a crucial requirement in industrial environments. Even more impressive: after 5,000 hours of UV accelerated aging testing, its insulation resistance still maintains over 95% of its initial value. This remarkable stability is truly remarkable. It's precisely because of this reliability, regardless of weather or environment, that it has become the preferred wire material for 5G base station power modules. People choose it for its peace of mind!

Product Support Services

As for Huaying's customized ETFE Insulated Magnet Wire, we offer exceptionally thoughtful service, fully meeting diverse needs. Firstly, regarding specifications, we can produce any desired size, ranging from 0.05mm to 1.0mm, with exceptionally flexible production. For multi-strand wire, we can achieve precision twisting up to 3000p, with uncompromising precision. As for conductor materials, copper and aluminum are available for selection. Furthermore, our production process utilizes an online quality monitoring system, ensuring a fast response time even for small orders. Furthermore, we update international metal prices daily, ensuring customers receive the best possible purchase cost and avoid wasting money. After-sales service is also a breeze. Our company has established a rapid response mechanism and a professional technical support team on standby at all times, ensuring you always have the right person to contact for any questions. Bulk purchases also include free sample testing and even assistance with application design. What a thoughtful service! Regardless of which batch of products leaves the factory, they are accompanied by a complete material report and performance test data. Every indicator is clearly documented, ensuring peace of mind for customers.

Application Scenarios

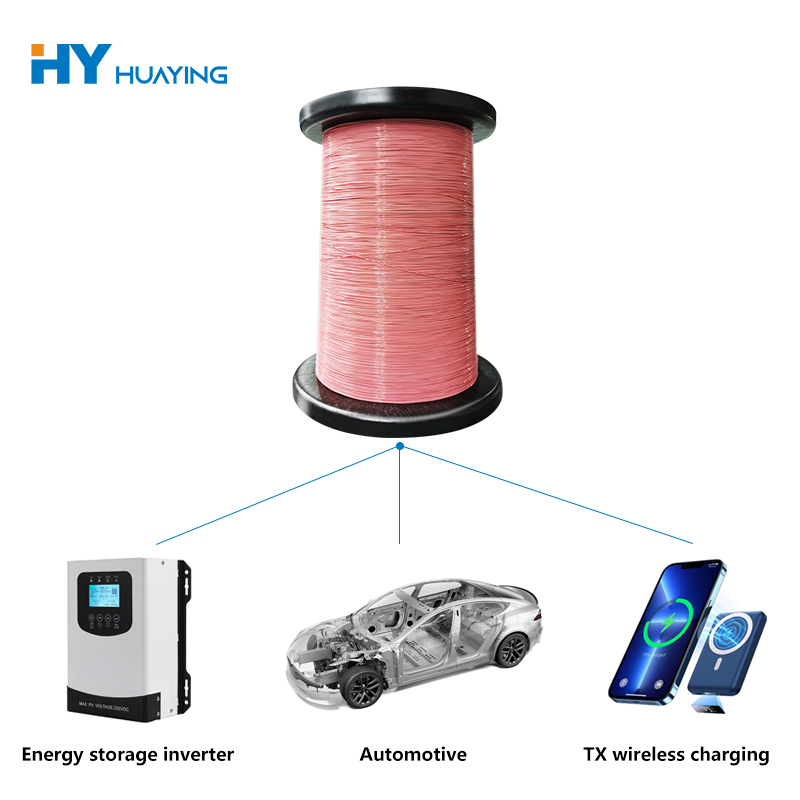

Huaying ETFE Insulated Magnet Wire is used in high-end applications such as new energy vehicle motor windings and internal wiring in medical equipment. Its high-temperature resistance meets the requirements of continuous operation at 150°C in automotive engine compartments, and its non-toxicity has passed medical-grade biocompatibility testing. Actual use cases have shown no signs of cracking in the insulation layer even after 5,000 hours of use in the vibration environment of military equipment. With so many real-world applications, what are you still waiting for? Contact us now!

Specifications(single series.Conventional)

Conductor		Finished outside diameter			Conductor resistance(20 degrees Celsius) (Ω/km)	Elongation %
Conductor	Tolerance	Minimum Value	Target Value	Maximum Value	Conductor resistance(20 degrees Celsius) (Ω/km)	Elongation %
0.15	0.008	0.342	0.350	0.358	1037.00	≥10%
0.16	0.008	0.352	0.360	0.368	908.80	≥10%
0.17	0.008	0.362	0.370	0.378	853.50	≥10%
0.18	0.008	0.372	0.380	0.388	757.20	≥10%
0.20	0.008	0.392	0.400	0.408	577.20	≥10%
0.21	0.008	0.402	0.410	0.418	549.00	≥10%
0.22	0.008	0.412	0.420	0.428	498.40	≥10%
0.23	0.008	0.422	0.430	0.438	454.50	≥10%
0.24	0.008	0.432	0.440	0.448	416.20	≥10%
0.25	0.008	0.442	0.450	0.458	370.20	≥10%
0.26	0.008	0.452	0.460	0.468	358.40	≥10%
0.27	0.008	0.462	0.470	0.478	331.40	≥15%
0.28	0.008	0.472	0.480	0.488	294.10	≥15%
0.29	0.008	0.482	0.490	0.498	285.70	≥15%
0.30	0.008	0.492	0.500	0.508	254.00	≥15%
0.32	0.008	0.512	0.520	0.528	222.80	≥15%
0.35	0.008	0.542	0.550	0.558	185.70	≥15%
0.37	0.008	0.562	0.570	0.578	165.90	≥15%
0.40	0.008	0.592	0.600	0.608	141.70	≥15%
0.45	0.008	0.642	0.650	0.658	112.10	≥15%
0.50	0.008	0.692	0.700	0.708	89.95	≥20%
0.55	0.008	0.742	0.750	0.758	78.15	≥20%
0.60	0.008	0.792	0.800	0.808	65.26	≥20%
0.65	0.008	0.842	0.850	0.858	55.31	≥20%
0.70	0.010	0.892	0.900	0.908	47.47	≥20%
0.75	0.010	0.942	0.950	0.958	41.19	≥20%
0.80	0.010	0.992	1.000	1.008	36.08	≥25%
0.85	0.010	1.042	1.050	1.058	31.87	≥25%
0.90	0.010	1.092	1.100	1.108	28.35	≥25%
0.95	0.010	1.142	1.150	1.158	25.38	≥25%
1.00	0.010	1.192	1.200	1.208	23.33	≥25%
